Key Navigation Points for Business Jets in European Airspace

Navigating Europe’s complex and highly regulated instrument flight rules (IFR) airspace requires more than just technical compliance—it demands a clear understanding of regional procedures, evolving operational impact of performance-based navigation (PBN) mandates, and the practical differences between FIRs. For business jet operators, ensuring that each flight meets the necessary routing, equipment, and documentation standards is essential to avoid costly delays or rejections. This guide outlines the key navigation regulations across major European regions and offers practical insights to support efficient, compliant operations—whether you’re dispatching a short intra-European flight or managing long-haul intercontinental flight operations.

1. Flight Planning and Navigation Requirements

All IFR (Instrument Flight Rules) flights into, out of, or within Europe must submit a flight plan to EUROCONTROL’s Network Manager (NMOC – Network Manager Operations Centre), which validates and distributes plans centrally. The plan must declare navigation and PBN (Performance-Based Navigation) capabilities, using the “R” (PBN approved) equipment code in Item 10 and specifying RNAV (Area Navigation)/RNP (Required Navigation Performance) approvals (e.g., RNAV1, RNP4) in Item 18. For instance, flying RNAV SIDs (Standard Instrument Departures) or STARs (Standard Terminal Arrival Routes) requires operators to declare RNAV‑1 certification along with GNSS (Global Navigation Satellite System) or DME/DME (Distance Measuring Equipment)‑based sensors.



After filing, ATC issues an IFR clearance via published ATS routes or RNAV direct segments. Aircraft must be equipped with dual long-range navigation systems—such as dual GNSS or DME/DME (Distance Measuring Equipment/Distance Measuring Equipment) / IRU (Inertial Reference Unit)—to ensure continuous positional accuracy. DME or equivalent capability is mandatory for longitudinal fixes in upper airspace, with Basic RNAV (RNP5) required above FL115. Additionally, VHF radios must support 8.33 kHz spacing, and all IFR flights must be Mode-S transponder equipped. Business jets over 5,700 kg must also have ADS-B Out capability.

2. Performance-Based Navigation (PBN) Transition

European IFR procedures are transitioning fully to Performance-Based Navigation under EASA’s Implementing Regulation (EU 2018/1048). Enroute segments, SID (Standard Instrument Departure), STAR (Standard Terminal Arrival Route), and approaches are now based on RNAV1 or RNP1 standards rather than traditional ground-based aids like VOR. RNP APCH approaches—supporting LNAV/VNAV, LPV, or RNP AR—are now standard.



Operators must ensure aircraft and crews are equipped and trained for required PBN specifications. By 6 June 2030, all instrument runway operations must be PBN-compliant. ILS CAT I (Instrument Landing System Category I) will be relegated to contingency use only, while RNP APCH (Required Navigation Performance Approach) with LPV (Localizer Performance with Vertical guidance) minima becomes mandatory—though ILS CAT II/III and GLS (GBAS Landing System) remain allowed.



Flight plans must accurately reflect PBN (Performance-Based Navigation) capabilities using correct codes like “D1” for RNAV1 (Area Navigation 1) or “L1” for RNP4 (Required Navigation Performance 4), following EUROCONTROL’s guidelines.



IFR Flight Planning Steps: Before departure, operators typically:

• File an IFR flight plan via Eurocontrol IFPS at least 2 hours before estimated time of departure (ETD). Include route, equipment (e.g. “SBGR3E2FGHIJ1RWXYZ” means ADS‑B, GPS, RNAV5, etc.) and PBN codes.
• Plan using published ATS routes (airways, UM/XM tracks) or RNAV direct (DCT) if RNAV-approved. Note that many European states have mandated RNAV‑5 or RNAV‑1 on specific airways.
• Obtain any required slots or clearances (air traffic flow management).
• After filing, NMOC (Network Manager Operations Centre) sends acknowledgements, and the plan is distributed to all affected ANSPs (Air Navigation Service Providers).

Key IFR Equipment Requirements

European AIPs and EASA regulations require IFR aircraft to carry essential navigation and control equipment. This includes dual VHF radios with 8.33 kHz channel spacing, VHF navigation radios (VOR, DME, ADF), dual altimeters, and an autopilot certified for instrument flight—especially for jet aircraft. In French airspace, DME (or RNAV capability) is explicitly required for longitudinal fixes in upper airspace. Due to the progressive decommissioning of ground-based navaids, a GNSS (GPS) system has become the default primary navigation source.



Above FL115, a basic RNAV system (RNP5) is mandatory. Below that level, any RNAV-designated route still requires compliance with RNAV specifications. To maintain redundancy, backup navigation—such as VOR/DME or a secondary GPS—is recommended in case of GNSS signal loss.

Communications and Surveillance Standards

IFR operations in European controlled airspace rely on VHF (Very High Frequency) voice communication using 8.33 kHz spacing. A continuously active Mode-S transponder is required for all aircraft under ATC surveillance. At higher altitudes and during oceanic segments, additional systems come into play: above FL290 in North Atlantic airspace, CPDLC (Controller–Pilot Data Link Communications, using ATN B1 protocol) and ADS-C (Automatic Dependent Surveillance–Contract) capabilities are mandatory under the NAT (North Atlantic) Data Link Mandate. HF (High Frequency) radio is retained as a backup communication tool in oceanic airspace.



Operators must also verify that onboard databases and equipment codes align with route-specific requirements prior to departure. Any known equipment issues—such as an inoperative GNSS—must be declared in the flight plan (using the NAV/… field in Item 18).

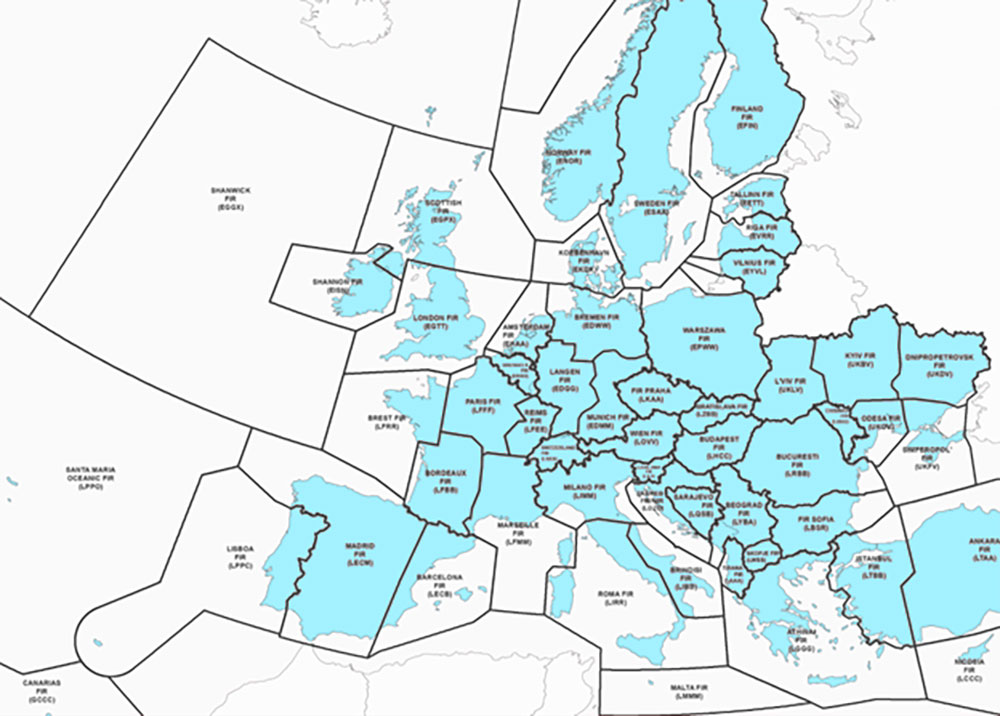

Regional Navigation Highlights

European IFR regulations are largely harmonised, but local AIP notes and airspace designs add detail. Below we outline examples for major FIRs:

United Kingdom & Ireland (London/Shanwick and Shannon FIRs)

These FIRs follow the above EASA standards. RNAV1 SIDs/STARs are common at major UK/Irish airports, though some conventional SIDs remain. Ireland’s AIP notes that non-RNAV aircraft may face inefficient routings. Over the North Atlantic, Shanwick/Gander tracks require RNP4 and full ADS‑C/CPDLC. HF communication is required as backup on oceanic legs.

France (Paris FIR)

France enforces RNAV (Area Navigation) and DME (Distance Measuring Equipment) requirements. For enroute navigation, French AIP mandates a DME or equivalent (GPS) to ensure longitudinal precision. Basic RNAV (RNP5) is required above FL115. Many French SIDs/STARs are RNAV‑1. SBAS (EGNOS) should be used for LPV approaches; indeed, approaches and SID/STAR procedures are being converted to RNP APCH/RNAV. Jet operators should expect to need RNAV and GNSS for arrivals at Paris, Nice, Lyon, etc.

Germany (Frankfurt/EMEA FIR)

German AIP still lists conventional radio aids (VOR, DME, ADF) for many procedures. However, Frankfurt and other major airports are introducing RNAV1 SIDs/STARs. Dual long-range nav and DME remain mandatory in some airspace. Mode‑S transponder/ADS‑B rules apply as EU‑wide. Operators should consult the German AIP for specific RNAV routes (e.g. East Germany airways are largely RNAV).

Southern Europe (Spain, Portugal, Italy)

Spain and Italy follow EU PBN rules. In the Lisbon FIR (Portugal), a special case exists: 8.33 kHz radios not required below FL195 if on VOR/DME routes. Otherwise, Spanish/Portuguese enroute airways are RNAV‑5 or conventional. Italian AIPs similarly require RNAV1 capability for many Milan-area SIDs. Business jets in these FIRs should be RNAV‑capable; RNP approaches (e.g. LPV) are available at major airports (Barajas, Linate, etc.).

Benelux (Amsterdam/Brussels FIRs)

RNAV is pervasive. The Netherlands requires RNAV‑5 above FL95 and on many Amsterdam STARs; SBAS (EGNOS) use is specified for LPV approaches. Belgium/Luxembourg FIR also mandates GNSS for RNP approaches. Transponder/ADS‑B and 8.33 kHz radios are compulsory as elsewhere.

Scandinavia (Köpenhamn, Oslo, Stockholm FIRs)

These FIRs enforce RNAV and PBN. Denmark, for example, mandates 8.33 kHz above FL195 and RNAV5 above FL95. Norwegian and Swedish FIRs have extensive RNAV route networks (e.g. Reykjavik FIR’s PBN routes). Operators flying across the Baltic or North Sea should be prepared for RNAV1 SIDs/STARs and ADS‑B in these FIRs.



(For any flight, flight operators might connect with Just Aviation to analyze the latest national AIPs, navigation requirements, and important updates to ensure full compliance.)

Short-Haul vs Long-Haul Compliance for Business Jets

To illustrate, consider these scenarios for a business jet:

Short-haul intra-Europe

A flight from Paris to Amsterdam. The operator files an IFR plan via Eurocontrol (e.g. via web or AFTN) listing RNAV1 capability and ADS‑B equipment. ATC will likely clear a PBN SID from CDG and RNAV STAR into Schiphol. All communications are by VHF (with 8.33 kHz radios). No special oceanic clearance is needed. The aircraft navigates using GNSS-based RNAV, monitors position via DME/DME, and captures the STAR waypoints. On arrival, approach is likely an RNAV or ILS procedure (ILS if needed in low weather, since CAT I ILS is still available pre-2030). In this short case there is no ADS‑C/CPDLC or HF radio use.

Long-haul Atlantic crossing

A flight from London (Luton) to New York. Here the IFR plan includes NAT directives: it lists an RNP4 capability (NM PBN code “R”) and ADS‑B in Item 10A. It uses a user-preferred route via Shannon–Gander; the operator must log on to Gander CPDLC or HF. At Shanwick, oceanic clearance is granted on a specific NAT track. Above FL290, the jet must have CPDLC and ADS‑C active; ATC clears via datalink while the crew monitors HF as backup. The flight maintains RNP4 navigation (dual GPS/IRU) and reports position automatically (ADS‑C). Thus, long-haul IFR demands compliance with ICAO NAT requirements on top of European rules – but many are similar (e.g. required performance and ADS‑B).



In practice, operators use checklists and dispatch tools to ensure compliance:

• Flight plan check: All required equipment codes in the plan (e.g. “S” for Mode S, “B” for ADS‑B, “R” for RNAV/RNP).
• Route validation: Confirm assigned ATS routes have necessary navigation coverage (DME fixes or RNAV).
• Crew briefing: Note region-specific rules (e.g. Ireland FIR’s RNAV routing note)
• Pre-flight: Verify FMS databases, transponder, ADS‑B, and radio tunings.

FAQs

1. Do all European countries require the same IFR navigation equipment for business jets?

No. While most European IFR rules are harmonized under EASA and EUROCONTROL, some FIRs have additional national requirements. For example, France mandates DME or equivalent for longitudinal navigation above FL115, while Portugal allows 25 kHz radios below FL195 in certain sectors.

2. What PBN codes and equipment must we include in the IFR flight plan for Europe?

Flight plans must list all onboard capabilities in Items 10 and 18. Most jets need codes for Mode-S transponder (S), ADS-B Out (B1), 8.33 kHz radios (Y), and PBN specs like RNAV1 or RNP4 (e.g. D1, L1, RNP2). Missing or incorrect codes can lead to route rejections or delays from Eurocontrol’s validation system.

3. Are there differences in IFR navigation procedures between short-haul and long-haul business jet flights?

Yes. Short-haul intra-European flights typically require compliance with RNAV1 SIDs/STARs, DME/DME or GNSS, and standard Eurocontrol routing. Long-haul flights (e.g., across the North Atlantic) require additional compliance with RNP4, ADS-C, CPDLC, and HF radio due to NAT HLA airspace requirements. Planning and equipment differ significantly.

4. Is ADS-B Out mandatory for business jets operating in Europe?

Yes. Any aircraft over 5,700 kg MTOW (which includes most business jets) must have ADS-B Out via a Mode-S ES transponder when operating IFR in most European controlled airspace. This applies both enroute and at airports. ADS-B status must also be declared correctly in the flight plan.

5. What are the main navigation planning challenges for business jet operators in Europe?

Key challenges include:



• Route availability based on aircraft nav specs (e.g. RNAV5 vs RNAV1)
• Avoiding rejected flight plans due to incorrect codes or route segments
• Managing regional FIR-specific rules (e.g. French DME rules or Irish RNAV-only routing)
• Preparing for 2030 PBN mandate when all runway operations will require RNP-based approaches.
