Middle East Airspace Navigation Regulations – What Business Jet Operators Need to Know

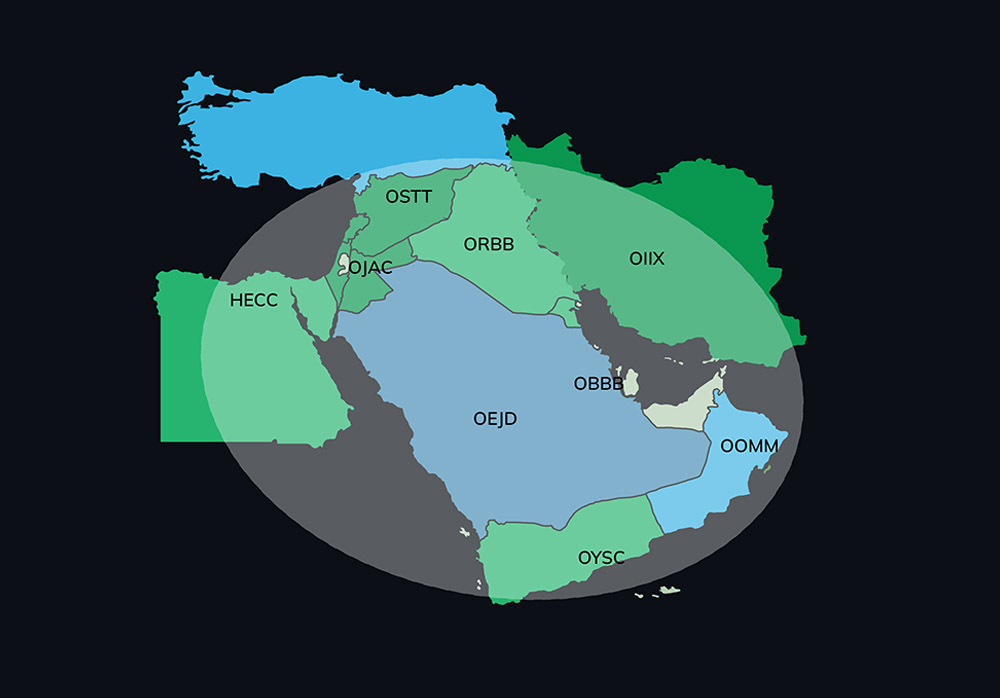

The Middle East (ICAO MID Region) has rapidly transitioned to performance-based navigation (PBN), meaning most IFR airways now require RNAV-equipped aircraft. In fact, ICAO guidance notes that RNAV-5 (RNP 5) is the default en route specification across the Middle East. In practice this means that modern business jets must be certified for RNAV operations (with GNSS or equivalent) and crews must be qualified. Each country’s Aeronautical Information Publication (AIP) spells out exactly which routes and flight levels demand RNAV1 or RNAV5 capability. Below we summarize the key navigation regulations by country and illustrate the flight-planning implications:

United Arab Emirates – PBN-Only Airspace

The UAE Emirates FIR was redesigned into a PBN-exclusive network in 2017. The General Civil Aviation Authority (GCAA) mandated that all en route and terminal segments in UAE airspace require RNAV‑1 (PBN RNP1) navigation. In other words, any IFR flight in the UAE must be equipped with approved RNAV/RNP systems (typically GPS LNAV/VNAV or better) and crews must hold RNAV-1 authorization. After 7 December 2017, the GCAA ceased accommodating any non-RNAV1 aircraft in UAE airspace. This affects business jet dispatch directly: flight plans through the UAE (for example, departures/arrivals at Dubai or Abu Dhabi) must be filled with RNAV1-capable routes. For instance, Dubai SID/STAR procedures are all RNAV‑1, and en route “G” and “W” routes are RNAV‑1 only. Non‑RNAV aircraft must be diverted on alternate routings or re‑routed outside UAE FIR.



Operators should note that flight plan Item 10 must reflect PBN capability. Per ICAO, RNAV5 (RNP5) capability is denoted by the code “R”. In UAE airspace, flights often specify /R in Item 10 to indicate RNAV-5 (even though RNAV‑1 is used operationally).



Some operators code “/D” (for RNP4/1) if they hold RNP-1 approval. In any case, failure to file the correct PBN suffix or to meet the RNAV requirement can result in ATC refusal or re-clearance. Because the UAE routes are closely spaced, operators should also ensure crews verify onboard NAV database accuracy and any required validation (e.g. IRS alignment, RAIM, etc) before entry.

Kingdom of Saudi Arabia – RNAV‑5 Airspace

Saudi Arabia’s AIP specifies that all Jeddah FIR en route airspace from FL160 up to FL600 is RNAV-5 (RNP-5) airspace, with only a few narrow exceptions. The Saudi AIP explicitly states that designated RNAV5 airspace covers virtually the entire FIR above FL160, except that certain routes (Y432, T142 and L564) are RNAV‑1 only. Thus, for most high‑level Saudi routes (commonly prefixed Y, Q or G in flight plans), operators must equip and file accordingly.



In practice, business jets flying above FL160 in Saudi airspace must have RNAV‑5-capable equipment. The AIP requires that “Operators of aircraft fitted with RNAV having a navigation accuracy meeting RNAV‑5 shall insert designator ‘R’ in Item 10 of the flight plan.” If an aircraft is non-RNAV or not RNAV‑5 certified, it may only fly conventional VOR/DME routes and must omit “R” (and insert “STS/NONRNAV” in Item 18). Put simply, nearly all modern business jet dispatches through Saudi airspace will list RNAV5 capability. ATC separation procedures in RNAV‑5 airspace assume RNP5 accuracy, so on-board LNAV/VNAV or GPS tuning is mandatory.



For example, a Dubai–Jeddah flight commonly uses Q-routes (e.g. Q16x or Q28x) that require RNAV5. An alternate routing via T142 (RNAV‑1) is available, but this is a specific RNP‑1 corridor and still requires RNAV-1 capability. Importantly, the base of RNAV‑5 airspace in certain southern/eastern sectors is at FL255, per the AIP, so a dispatch below that level in those sectors may have different rules. Operators must check the AIP charts (ENR 3) or NOTAMs for notes (routes marked “**” for RNAV‑5, etc).

Qatar and Bahrain – Mixed RNAV1/RNAV5 Regimes

The Qatar Aeronautical Information Management (QCCA) and Bahrain FIRs have similar navigation rules. Their AIP notes that RNAV1 and RNAV5 are implemented on a route- or airspace-basis. In practical terms, most terminal and high-altitude airspace is RNAV1, while mid-level upper routes (roughly FL100–FL145) are RNAV5. For example, “lower” routes within Doha or Manama terminal areas are RNAV1, RNAV5 is applied from the top of TMA to FL145, and RNAV1 is again used from FL150 upward.



Flights in Bahrain/Qatar airspace must comply by filing the correct navigation suffix. The AIP explicitly requires “Operators of aircraft fitted with RNAV having a navigation accuracy meeting RNAV5 shall insert designator ‘R’ in Item 10 of the flight plan.” (RNAV1-capable aircraft typically file “D” or “L” per ICAO if cleared for RNP4/2/1, but “R” covers RNAV5 equipment.)



For example, an operator flying from Muscat (OOMS) to Doha (OTHH) via the TMSIF-UPAKO-BATI route would note that these airway segments are designated “RNAV1/RNAV5” designated. If cleared via RNAV5 segment (common at medium FLs), the flight plan gets an “/R” code; if via an RNAV1-only track, the crew must still meet RNAV1 accuracy.



Notably, popular Upper routes in the Gulf (like UMxx or UTxx) often cross these FIRs. Operators should verify each airway’s NAV spec in the ENR 3 charts. For instance, route T430 between Oman and Bahrain is charted as RNAV1. As a rule, having RNAV5 (i.e. GPS LNAV) capability covers both RNAV5 and RNAV1 requirements; but if an operator can only meet RNAV1 (RNP1), alternative filings may be needed. In short: plan routes as RNAV and put “/R” in the flight plan when RNAV5 is required.

Oman and Other Gulf States

Oman’s airspace (Muscat FIR) likewise mandates RNAV navigation on most upper ATS routes. Muscat’s AIP (Part 2 ENR) establishes “RNAV1/RNAV5 airspace” above certain altitudes and applies radar separation based on RNAV accuracy. In practice, routes like UT101 or UT646 require RNAV5 to FL245 and then RNAV1 above (check the AIP for route details). Business jets departing Oman en route to, say, Yemen or Dubai, will typically file RNAV routes with the appropriate PBN code.



Similarly, Kuwait and other Gulf states have adopted PBN. Kuwait’s latest AIP shows many RNAV5 Upper airways (prefix BNN or BLA type) and RNAV1 in terminal areas. Qatar (Doha) TMA flight information region both require RNAV1/SBAS for many procedures. Even in regions not fully PBN, RNAV is strongly preferred.



Key point: Treat Middle East en route and TMA navigation as PBN-first. If operating a legacy business jet with only VOR/DME (e.g. VOR/DME INS), dispatch planners must check for conventional alternatives, as many preferred routes will simply be off-limits.

Flight Planning and Performance Requirements

Below are the key steps operators must follow to integrate Middle East RNAV navigation requirements into flight planning and ensure compliance with regional AIP guidance:

1. Route Selection

Operators should select an IFR route that permits RNAV operations. All published Q-, Y-, T-, or A-route segments in the Middle East’s Upper ATS routes specify their required RNAV specification in the AIP (see ENR 3). For example, Saudi “Q” routes and Qatar’s “T” routes typically require RNAV-5, as noted on charts.

2. Equipment and Crew Certification

Ensure that the dispatch/operations manual and flight crew have the necessary navigation equipment and approvals. Some RNP1 procedures may require crew certification before conducting the flight.

3. ICAO Flight Plan Filing

When filing the ICAO flight plan, use the correct Performance-Based Navigation (PBN) equipment codes in Item 10. The suffix “/R” indicates RNP5/RNAV5 capability. For flights requiring RNP4 (RNAV2) or RNP2 (RNAV1) routes, codes “D” or “L” may apply. Some countries require operational suffixes to be appended, often listed under 18-Other Information. For example, a flight from Dubai to Jeddah might include “…/G/S/NX” (GNSS, VHF, RNP5) in Item 10 to meet UAE and Saudi RNAV5 requirements.

4. Navigation Contingency Planning

Operators must plan for possible navigation failures. For instance, the Saudi AIP mandates that if RNAV-5 capability is lost en route, the crew must notify ATC with “NEGATIVE RNAV” and may be re-routed via conventional route segments or radar vectors. Similarly, Bahrain’s AIP requires confirmation of RNAV system performance before joining an RNAV5 route and provides fallback procedures if RNAV fails. Dispatchers should plan alternate routes and fuel contingencies, considering diversion fixes like the nearest VOR/DME stations.

Route Planning Scenario

Consider a hypothetical business flight from Abu Dhabi (OMAA) to Cairo (HECA). A common routing might transit UAE, Oman, Saudi and Jordan FIRs. First, Abu Dhabi departure uses an RNAV SID. En route, the jet could file OMAA OMAAA DEP DCT SOMAX UL975 UT646 Z45 Z115 HUL XHERA DCT HECA.



In this plan: UL975, UT646 (over Oman) and Z45, Z115 (over Saudi/Jordan) are upper RNAV routes. The AIP confirms UL975 is RNAV1/RNAV5 (requiring /R) and Z-routes are RNAV5. The flight plan’s Equipment/Remarks would include an “R” or “G” code to indicate GNSS-capable navigation (for example, Item 10: “G/R SBD” meaning GNSS and RNP5).



At each FIR boundary, ATC uses the approved RNAV waypoints; no VOR intersections are needed. If the aircraft’s GNSS failed over Saudi, ATC could vector it to the nearest VOR (as contingency). Throughout this process, the operator must check each FIR’s notes: Oman’s AIP (Jeddah/UIR coordinate procedures), Saudi AIP (RNAV5 columns) and Jordan’s AIP (similar RNAV).



Even though this example used RNAV routes exclusively, if an RNAV route were unavailable (say due to NOTAM), the crew might have to switch to conventional airways (if possible). That scenario should be avoided by confirming the PBN routes are published and active.

FAQs

1. Do all Middle East countries require the same RNAV specification for en route operations?

No. While RNAV-5 is the default en route specification across much of the region, some FIRs (like the UAE) require stricter RNAV-1 performance for all flight segments, including terminal and en route phases. Operators must review each FIR’s AIP to confirm the correct PBN requirement for filed airways and flight levels.

2. What happens if a business jet experiences RNAV system degradation mid-flight over the Middle East?

If RNAV capability is lost, operators must ensure the crew is prepared to declare “Negative RNAV” to ATC immediately. Contingency procedures may involve radar vectoring or diversion to conventional routes, depending on FIR. This possibility should be planned for during dispatch with suitable alternates.

3. Can a flight still operate in UAE or Saudi airspace if it lacks RNAV approval?

In most cases, no. UAE airspace is PBN-only, and Saudi Arabia requires RNAV-5 above FL160. Non-RNAV-equipped aircraft are generally not accommodated and would need to plan a completely different routing outside those FIRs or obtain exceptional clearance, which is rarely granted.

4. Is filing “/R” in Item 10 always sufficient for RNAV compliance in the Middle East?

Not always. While “/R” indicates RNAV-5 capability, specific airways—especially RNAV-1 routes—may require additional codes (like “/D” for RNP-4 or “/L” for RNP-1). Operators must verify the appropriate codes based on the exact airways used and the aircraft’s certified navigation performance.

5. How frequently do PBN route requirements change in Middle Eastern FIRs?

Route structures and navigation specifications are regularly updated through AIRAC cycles and NOTAMs. FIRs like Bahrain and Oman periodically restructure route segments or reclassify RNAV requirements. Dispatch teams should review each FIR’s AIP and monitor NOTAMs before every flight planning and scheduled buffer time cycle.
