Free Route Airspace (FRA) Regulatory Progress and Operator Preparation Guidelines

Free Route Airspace (FRA) is a concept allowing IFR flights to plan a direct route between designated entry and exit points, optionally including intermediate waypoints, without adhering to the fixed ATS airway network. In practice, FRA enables operators to fly closer to the great-circle path, while still observing constraints such as published danger areas or airspace reservations.



Aircraft remain under ATC control, but route selection is largely at the operator’s discretion. The adoption of FRA is motivated by efficiency and environmental goals. For example, Eurocontrol reports that FRA implementation in Europe has reduced average route extension from 3.58% in 2007 to 1.59% in 2024, saving billions of nautical miles, fuel, and associated emissions annually.

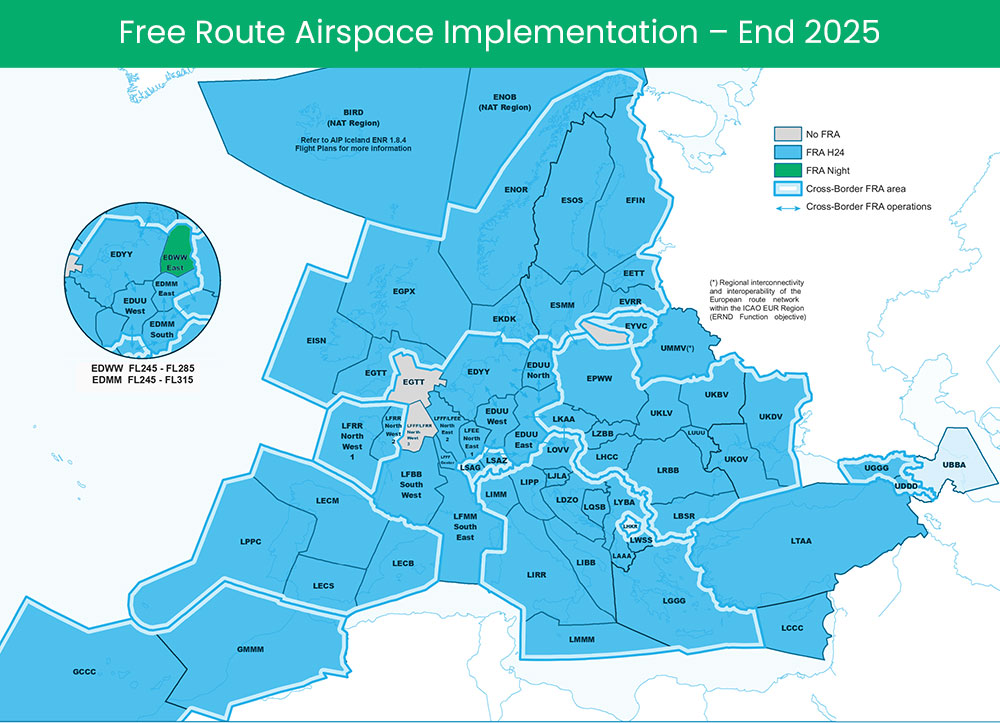

European Regulatory Progress

Europe has been at the forefront of FRA implementation. Under the SESAR/Single European Sky framework, Eurocontrol and national Air Navigation Service Providers (ANSPs) have introduced FRA in phases. By the end of 2022, most ECAC states offered at least initial FRA services. These were often limited to night-time or upper-airspace operations. Full 24-hour, cross-border FRA is mandated by EU regulation to be in place by 31 December 2025. Portugal, for example, opened full upper-airspace FRA as early as 2009, and since then, FRA coverage has expanded to over 75% of European airspace.



The European Commission’s Implementing Regulation (EU) 2021/116 (Common Project One) formally requires FRA above FL245/FL310 (as applicable) in all member states by 2025. Eurocontrol’s Network Manager provides guidance and maintains the official “FRA Points List,” which designates entry/exit waypoints and route segments for all ECAC and neighboring states.



The operational and environmental benefits of FRA in Europe are significant. Eurocontrol forecasts that full FRA implementation will save approximately 1 billion NM, 6 million tonnes of fuel, and 20 million tonnes of CO₂ annually, equating to around €5 billion in fuel cost savings. For operators, FRA enables more direct routings, reducing flight distance, time, and fuel burn, while controllers benefit from smoother traffic flows and fewer tactical route adjustments.

Global FRA and Equivalent Initiatives

While Europe leads in FRA deployment, similar concepts are emerging worldwide. In North America, the U.S. FAA provides comparable flexibility through the North American Route Program (NRP) for high-altitude flights. Under NRP, operators may file direct point-to-point routes above FL290. The FAA allows GNSS-equipped aircraft to be cleared on “random RNAV routes” in enroute airspace.



Canada’s NAV CANADA also supports extensive RNAV routing, including Q‑routes and direct point-to-point paths, consistent with ICAO PBN standards. Business jets approved for RNAV RNP‑1 (or RNP‑4 for oceanic segments) can routinely file direct routes across North America, subject to ATC clearance.



In the Asia/Pacific region, ICAO’s regional plans encourage free-routing adoption. The Asia/Pacific Seamless ATM Plan and recent ICAO guidance promote FRA implementation (block-wide or cross-border) over the next decade. ICAO meetings have urged member states to implement FRA in upper airspace by approximately 2030.



Several initiatives are underway in Asia: South China Sea and Japan–Korea airspace blocks are studying phased FRA introduction above FL330–FL350. In India, the Civil Aviation Authority has introduced Free Route ATC sectors above FL245 on select north-south routes. East Asia projects (e.g., INREEL/National initiatives) aim to open FRA between Japan, Korea, and Fukuoka FIRs for trans-Pacific traffic. While technical requirements such as RNP accuracy are still being finalized, the trend is clear: ANSPs across Asia are preparing for direct routing as RNAV equipage expands.



In Latin America and the Caribbean, FRA implementation is progressing as part of ICAO’s CAR/SAM Air Navigation Plan. FRA, often referred to as “User‑Preferred Routes” (UPRs), has been trialed jointly by IATA and local ANSPs, demonstrating direct RNAV routings between major cities in South America, the Caribbean, and North America. Several LAC states now publish direct routes on IFR charts and plan to expand FRA as part of broader airspace modernization efforts.



In oceanic regions, initiatives such as UPRs and reductions in Organized Track Structures (OTS) in the North Atlantic and North Pacific (NAT/PAC) airspace align with FRA principles. RNAV-equipped flights can select optimal tracks within frameworks like the ICAO North Pacific Route System (NOPAC) and NAT agreements, improving operational efficiency for transoceanic business and commercial flights.

Operator Preparation and Guidelines

Business jet operators must take proactive steps to use FRA safely and efficiently. Key preparations include:

Navigation Capability

Ensure the aircraft’s navigation system meets FRA requirements. Typically, this means an approved RNAV/RNP system (often RNP‑1) with dual GNSS, as FRA routes rely on direct fixes. For example, FAA rules allow RNAV-equipped (GNSS) aircraft to file random RNAV routes. Flight crews must hold the necessary PBN authorizations (RVSM, RNAV/RNP) and maintain an up-to-date navigation database covering FRA waypoints.

Flight Planning

Review FRA entry/exit points and authorized routes in the operating region. Eurocontrol publishes a detailed FRA Points List for Europe, regularly updated, while other regions may provide AIP supplements or PDFs. Use these waypoints as endpoints for each direct route segment and file the flight plan accordingly (or indicate direct “DCT” legs where allowed). In many FRA areas, the flight plan will list a series of named waypoints with DCT between them. Ensure all intermediate waypoints are current and recognized by ATC systems. Do not assume unrestricted freedom: entry/exit points or published linking points must be used.

Route Restrictions

Even in FRA, certain constraints apply. Controllers will reject flight paths that penetrate active danger areas, prohibited areas, or non-participating FIRs. Operators must avoid danger areas, Temporary Reserved Airspaces (TRA), or Temporary Segregated Areas (TSA) when planning FRA routes. Inactive routes or segments (due to day/night schedules) must not be crossed. Many FRA implementations are upper-level only (e.g., above FL245 or FL310), so altitude limits must be observed. For cross-border FRA flights, confirm that all FIRs on the route have FRA implemented; otherwise, conventional airways may need to be used at FIR boundaries.

Flight Plan Validation

Modern flight-plan systems, such as Europe’s Integrated Flight Planning System (IFPS), validate FRA routes against the official FRA definitions for each FIR. Operators should be ready to revise plans if ATC flags issues. Common problems include missing entry points or crossing closed segments. Filing a point-to-point route outside an FRA block will result in rejection. Cross-check planned FRA routes against published enroute charts or AIP FRA definitions to ensure compliance.

Regulatory Compliance

Confirm any local FRA requirements. In Europe, FRA flights still use the standard ICAO flight plan format. No new field codes are required. Routes must be filed correctly, and exceptional routes may need national approval. In the U.S., no special clearance beyond IFR/RNAV capability is needed for direct routing, though flights above FL290 must follow the North American Route Program (NRP) rules. In other regions, operators should consult national AIP supplements for FRA usage notes. Ensure compliance with any local adoption of FF-ICE or ICAO New Flight Plan requirements.

NOTAMs and AIP

Continuously review NOTAMs, as temporary restrictions may affect FRA operations. Military activity, airway activations, or other temporary closures may require route adjustments. Check AIP ENR sections for FRA boundaries and key points. Eurocontrol and some national ANSPs also publish FRA activation schedules and conditional restrictions, such as day/night switching of airway segments.



Below is a checklist summarizing key preparation steps:

Preparation Item	Guidance / Requirement
Equipage & Authorization	Verify RNAV/RNP capability (e.g. RNP‑1) and GNSS reliability for planned altitudes. Ensure crews have RNAV/RNP authorization. (US: GNSS/RNAV required for “random RNAV routes”.)
Review FRA Coverage	Consult official sources (Eurocontrol FRA maps, AIP supplements, ICAO regional plans) to see where FRA is active. Note FRA entry/exit points and altitude limits.
Flight Plan Routing	File direct routes only between valid FRA points. Use published waypoints (fixes) and DCT as needed. Reference the latest FRA points list (Eurocontrol) when planning.
Avoid Restricted Areas	Make sure planned trajectories do not cross prohibited/military areas or inactive airways. Operators “must avoid” these when using FRA. Insert waypoints to detour if needed.
Contingency Planning	Plan alternates and contingencies: if ATC denies the FRA route (e.g. traffic congestion, weather), have a fallback via conventional airways or adjacent FRA blocks.
ATC Coordination	Be prepared to coordinate special routings with ATC in advance for cross-border FRA or unusual trajectories. Use flight plan remarks if necessary to explain direct segments.
NOTAM/AIP Monitoring	Check NOTAMs for FRA status changes (airspace closures, entry/exit point changes). Verify in the AIP that route legs are valid (e.g. affected by Flight Level Reservations or ATFM slots).
Operational Training	Update dispatcher/crew training: review FRA procedures (direct-to clearances, position reporting, etc.), and any new enroute phraseology (e.g. “CLEARED AS FILED” on an FRA route).
Performance/Fuel Planning	Recompute fuel and time: FRA typically shortens track, but verifies climb/descent profiles and alternate fuel, since FRA may involve long level segments.

FAQs for Business Jet Operators on Free Route Airspace (FRA)

1. What flight levels does FRA typically apply to, and can business jets flying lower still benefit from it?

FRA is generally implemented in upper airspace, typically from FL290 upward in North America, and from FL245 or FL310 in Europe and parts of Asia. Some states are gradually extending FRA to lower levels, particularly where regional traffic density is low or cross-border harmonization is feasible. Business jets operating at intermediate altitudes may still benefit from partial FRA, such as night-time or sector-specific FRA below FL245 in certain FIRs. Operators should always consult the relevant ENR 1.3 or 3.3 sections of the AIP to confirm applicable levels.

2. How does FRA impact ATFM (Air Traffic Flow Management) compliance and slot allocation?

In FRA regions with centralized Air Traffic Flow Management (ATFM), such as Europe, slot and CTOT (Calculated Take-Off Time) requirements remain applicable. Direct FRA routing does not exempt an aircraft from departure slots or regulated flow. However, flying more direct routes may reduce the number of regulated sectors crossed, potentially lowering the risk of delays. To optimize ATFM outcomes, operators should submit validated FRA flight plans early and avoid last-minute changes that bypass the network’s flow modeling.

3. Is ADS-B or CPDLC required to operate in FRA airspace?

ADS-B (Automatic Dependent Surveillance–Broadcast) and CPDLC (Controller-Pilot Data Link Communications) are not generally required for FRA operations. However, in remote or oceanic FIRs, these capabilities may be mandated to maintain surveillance or communication continuity. Certain upper-airspace FRA sectors, especially near oceanic or non-radar FIRs, may enforce Datalink Mandates (e.g., NAT DLM, EUR DLS IR). Operators should confirm requirements in any adjacent non-radar or oceanic regions.

4. How do FRA route structures affect alternate airport planning?

While FRA allows flexible routing, alternate airport selection must comply with ICAO and local fuel regulations. Non-traditional FRA routings may affect STAR or SID access, so operators should verify that alternates are reachable under both navigation and weather conditions. Additionally, alternates should remain within surveillance and ATC coverage throughout the flight.



Free Route Airspace is transforming business jet navigation, offering greater efficiency and flexibility. With expert oversight, operators can stay ahead of regulatory changes. Just Aviation provides precise guidance to optimizes operational efficiency and ensure seamless adaptation to FRA standards across multiple regions.
